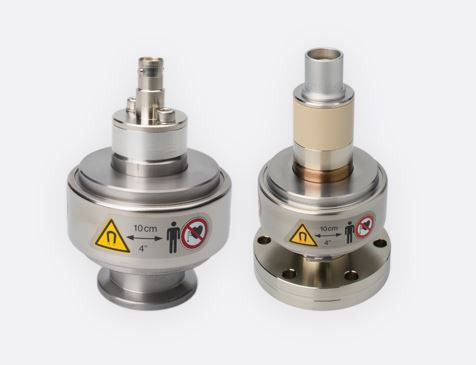

Inficon – MAG050, MAG060, MAG070
Advantages
- Reliable and proven gauge head design, based on the inverted magnetron principle
- Large vacuum pressure measurement range capability from 1×10-11 (MAG070) to 5×10-3 mbar
- Bakeable to 150 °C (MAG050) or 250 °C (MAG060, MAG070)
- Good ignition properties
- Corrosion resistant with ceramic feedthrough
- Radiation resistant design available (MAG060, MAG070)
- Easy to maintain, low cost of ownership
Typical applications
- General vacuum measurement and control for demanding and/or high temperature applications from low to the high vacuum range
