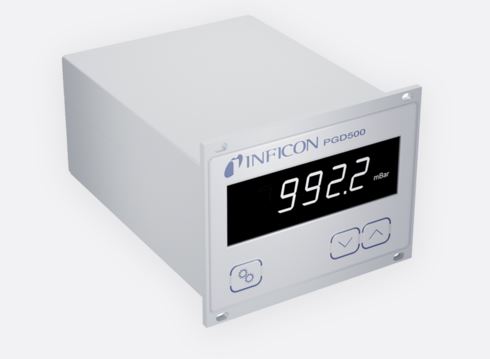

Inficon – PGD500
Advantages
- User selectable measurement unit (Pa, mbar or Torr)
- Compact bench top model design can be easily mounted in a panel or 19″ rack
- 0 to 10 V output signal from the gauge is available for use in PLC or with a chart recorder
- One free adjustable set point
- CE certified
Typical Applications
- Fore vacuum pressure measurement
- Pressure measurement on evacuation/filling stations for RAC applications
- Pressure measurement in light bulb production lines
- General vacuum measurement and control in the medium and rough vacuum range
