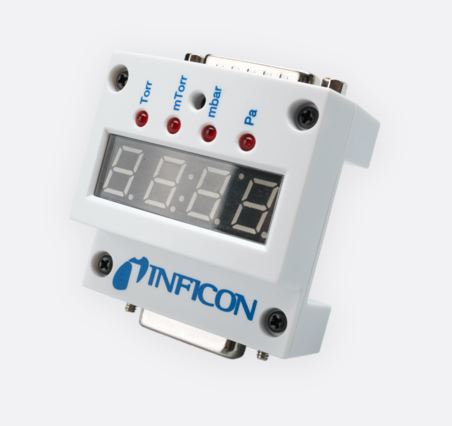

Inficon – VGD500
Advantages
- 4 Digit display for easy read out
- Large 10mm active LED display –
readable from distance and wide range gauge of angle - In-line plug design
- 15pin D-Sub, no extra power connection
- Compact small size
- Compatible with all Fullscale ≥100mTorr
- pressure Units selectable (Torr, mTorr, mbar and Pa)
- CE certified
