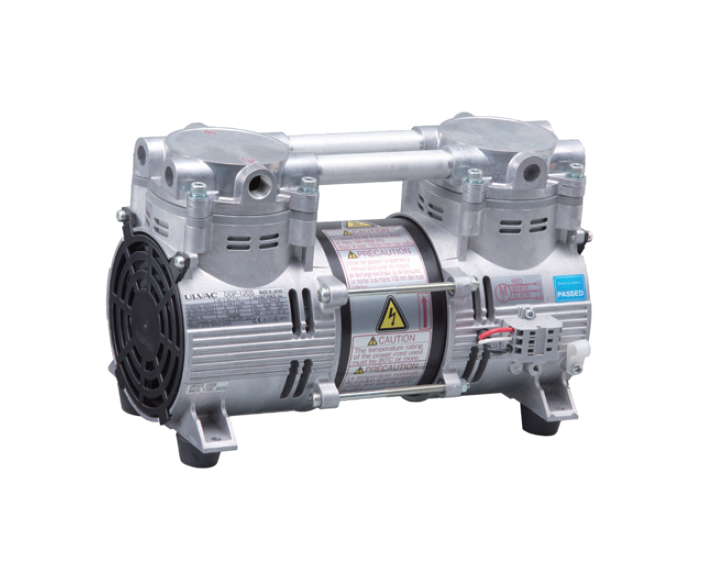

DOP-120SY
$0.00
Rocking Piston Type
- Pumping Speed: 120 L/min (50Hz), 140 L/min (60Hz)
- Ultimate Pressure: 8.0 × 10³ Pa
- Motor: Three-phase, 200V, 120W
- Full Load Current: 2.4A
- Weight: 6.4 kg
- Inlet/Outlet Diameter: Rc 1/4
- Dimensions: 139.5(W) × 255(L) × 167(H) mm
Related products
-
DA-81S
$0.00Add to cartDiaphragm Type [Standard Type]
- Pumping Speed: 75 L/min (50Hz), 85 L/min (60Hz)
- Ultimate Pressure: 13.3 × 10³ Pa
- Motor: Single phase, 220V, 100W
- Full Load Current: 1.2A
- Weight: 10.3 kg
- Inlet/Outlet Diameter: Rc 1/4
- Dimensions: 181(W) × 336.5(L) × 217(H) mm
-
DTU-20
$0.00Add to cartDiaphragm Type [High Vacuum Type]
- Pumping Speed: 20 L/min (50Hz), 23 L/min (60Hz)
- Ultimate Pressure: 200 Pa
- Motor: Single phase, 220V, 80W
- Full Load Current: 0.72A
- Weight: 7.5 kg
- Inlet/Outlet Diameter: Rc 1/8
- Dimensions: 161(W) × 327(L) × 217(H) mm
-
DA-40SC
$0.00Add to cartDiaphragm Type [Standard Type]
- Pumping Speed: 40 L/min (50Hz), 46 L/min (60Hz)
- Ultimate Pressure: 3.3 × 10³ Pa
- Motor: Single phase, 220V, 100W
- Full Load Current: 1.2A
- Weight: 10.3 kg
- Inlet/Outlet Diameter: Rc 1/4
- Dimensions: 128(W) × 242(L) × 178(H) mm
-
DA-121DF
$0.00Add to cartDiaphragm Type [Standard Type]
- Pumping Speed: 120 L/min (50Hz), 145 L/min (60Hz)
- Ultimate Pressure: 3.3 × 10³ Pa
- Motor: Single phase, 220V, 400W
- Full Load Current: 2.5A
- Weight: 26.0 kg
- Inlet/Outlet Diameter: G1/2
- Dimensions: 193.5(W) × 411(L) × 285(H) mm
-
DA-41D
$0.00Add to cartDiaphragm Type [Standard Type]
- Pumping Speed: 40 L/min (50Hz), 46 L/min (60Hz)
- Ultimate Pressure: 3.3 × 10³ Pa
- Motor: Single phase, 220V, 100W
- Full Load Current: 1.25A
- Weight: 10.3 kg
- Inlet/Outlet Diameter: Rc 1/4
- Dimensions: 157(W) × 336.5(L) × 217(H) mm
