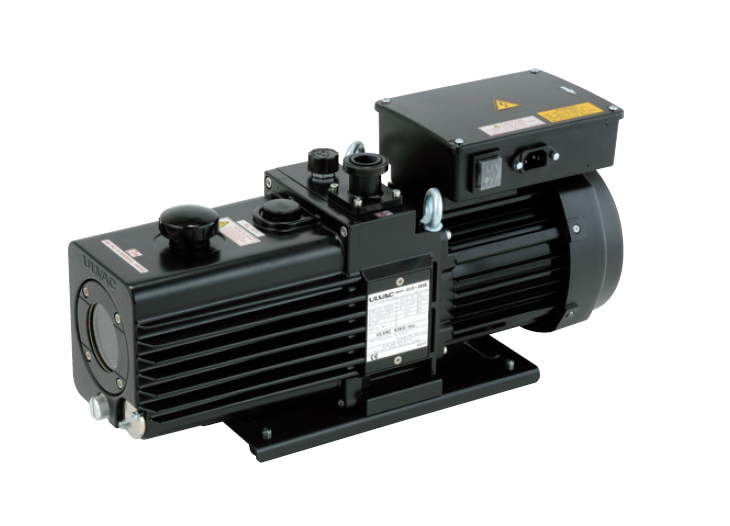

GLD-202BB
$0.00
Standard Type
- Pumping Speed: 200 L/min (50Hz), 240 L/min (60Hz)
- Ultimate Pressure: 6.7 × 10⁻³ Pa
- Motor: Single-phase, 220V, 750W, 4P, Capacitor run
- Full Load Current: 4.0A
- Weight: 65.0 kg
- Inlet/Outlet Diameter: Rc 1/2
- Dimensions: 380(W) × 560(L) × 530(H) mm
Related products
-
DA-60D
$0.00Add to cartDiaphragm Type [Standard Type]
- Pumping Speed: 60 L/min (50Hz), 72 L/min (60Hz)
- Ultimate Pressure: 3.32 × 10³ Pa
- Motor: Single phase, 220V, 200W
- Full Load Current: 2.4A
- Weight: 19.0 kg
- Inlet/Outlet Diameter: G3/8
- Dimensions: 156(W) × 358(L) × 238(H) mm
-
DA-120S
$0.00Add to cartDiaphragm Type [Standard Type]
- Pumping Speed: 120 L/min (50Hz), 144 L/min (60Hz)
- Ultimate Pressure: 13.3 × 10³ Pa
- Motor: Single phase, 220V, 200W
- Full Load Current: 2.4A
- Weight: 19.0 kg
- Inlet/Outlet Diameter: G3/8
- Dimensions: 162(W) × 358(L) × 238(H) mm
-
DA-20DC
$0.00Add to cartDiaphragm Type [Standard Type]
- Pumping Speed: 20 L/min (50Hz), 24 L/min (60Hz)
- Ultimate Pressure: 5.33 × 10³ Pa
- Motor: Single phase, 220V, 60W
- Full Load Current: 0.8A
- Weight: 7.2 kg
- Inlet/Outlet Diameter: Rc 1/4
- Dimensions: 118(W) × 242(L) × 178(H) mm
-
Qulee Reactive Gas Monitor
$0.00Add to cart- Mass Range: 1 to 200 amu
- Resolution: M/ΔM = 1M (10% peak height)
- Sensitivity: 1×10⁻³ A/Pa
- Minimum Detectable Partial Pressure: 1×10⁻¹⁰ Pa
- Ion Source: Closed ion source with magnetic field
- Emission Current: 10 μA
- Bakeout Temperature: Maximum 120°C
- Pressure Range: 1×10⁻⁶ to 13 kPa
- Pumping System: Turbo molecular pump (67 L/s for N₂)
- Power Supply: AC 100V, 15A
- Weight: 57 kg (pumping system), 38 kg (controller)
-
DAT-100S
$0.00Add to cartDiaphragm Type [Standard Type]
- Pumping Speed: 100 L/min (50Hz), 110 L/min (60Hz)
- Ultimate Pressure: 13.3 × 10³ Pa
- Motor: Single phase, 200–220V, 200W
- Full Load Current: 2.8A
- Weight: 11.0 kg
- Inlet/Outlet Diameter: Rc 1/4
- Dimensions: 212(W) × 278(L) × 224.5(H) mm
